Electrifying Refuse Collection

Our products

Innovativeness

We production and use of new and economically useful knowledge

Eco friendly

Our products designed to do the least possible damage to the environment

Unique design

We have access to the best technology and can offer the best skills

High quality

Our aim is to ensure you receive the  highest quality products and service

Our products

Charger

The on-board charger is connected to the mains using an industrial standard CEE-16A connector. You can recharge on any location where 400 Volt 3 phase (16 Amp group) is available

Lithium Ion batteries

Lithium Ion batteries ensure low weight of the E-PTO. The chemistry used (LiFePO4) ensures a slow aging of the batteries when these are deeply discharged on a daily basis

All-in-one

One package that contains all components. No external high voltage cables

Chamber pump

Every E-PTO can be delivered with Load Sense of fixed single or double chamber pump. Banke however advises to use our special fixed pump that is close to noiseless

Control interface

Available with CAN-bus or Analog control interface

Performance

30 KW nominal and 45 kW peak performance

Capacity

Available in 18, 36, 54 and 72 kWh capacity

Battery pack

The battery pack is constructed in such way that each cell can be individually exchanged

Outer structure

Powder coated aluminium outer structure in RAL 9010 white. Can be delivered in RAL colour code if this colour is available as powder coat. Please consult the factory.

Design

Banke E-PTO systems have a generic design and can be used with all body manufacturers

Common system

System is split into 2 boxes. The battery box contains the battery cells and battery management system. The Powerbox contains the Power electronics, Hydraulic pump and charger.

Cable connection between working box

Powercable between Powerbox and Battery box is operated at 120 Volts for safety.

Possibilities of use

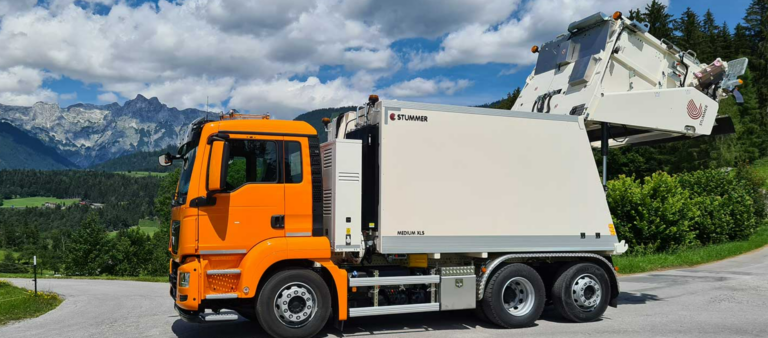

Originally designed for mobile cranes but also used on refuse trucks if space at the chassis frame is available. This allows for a bigger body volume.

Crane system

Due to the 340 bar working pressure with mobile cranes only the Load-sense pump version can be used. The crane system must have Load sense hydraulics too. For refuse applications Banke advises to use our special fixed pump that is close to noiseless.

Mutual work

The Powerbox of the CM series can be combined with an E-PTO of the TM 54 series. This provides two independent hydraulic systems that can deliver (peak) power.

Chassis mounted system

Boxes are independently mounted to the chassis frame with an optionally delivered bracket system

Charger

The on-board charger is connected to the mains using an industrial standard CEE-16A connector. You can recharge on any location where 400 Volt 3 phase (16 Amp group) is available.

Lithium Ion batteries

Lithium Ion batteries ensure low weight of the E-PTO. The chemistry used (LiFePO4) ensures a slow aging of the batteries when these are deeply discharged on a daily basis.

Control interface

Available with CAN-bus or Analog control interface.

Performance

30 KW nominal and 45 kW peak performance

Capacity

Available in 22, 29 and 36 kWh capacity

Battery pack

The battery pack is constructed in such way that each cell can be individually exchanged.

Outer structure

Powder coated aluminium outer structure in RAL 9010 white. Front doors are stainless. Box exteriors can be delivered in RAL colour code if this colour is available as powder coat (e.g. chassis grey). Please consult the factory.

Design

Banke E-PTO systems have a generic design and can be used with all body manufacturers

The E-PTO systems type TM

Like the E-PTO large this system also mounts in between the chassis-cab and the refuse body. It is designed as a full "plug-in" but is also prepared to recharge with the help of an additional inverter or generator. Due to a little lower capacity and operating on a lower voltage level, the system is 200 kg lower in weight.
